UG-51

PH. TYPE

Thick Barrel
Rear 3/8" x 6½"/7"/7½”, 36/40H x 12/14gg
Front 3/8" x 5½"/6” 32/36H x 12/14gg
Thread-34.8”x24TPI
Lubrication Hole & clip to order
Finish to order

UG-52

RL. TYPE / FRENCH TYPE

HUB Thin Barrel
Rear 3/8" x 6½"/7"
Front 5/16" x 5½"
Thread : 34.8 x 24 TPI/M35 x 1mm/34.7 x 1mm
Lubrication Hole & clip to order
Holes/Finish to order

UG-53

CART HUB (FRONT)

UG-54

CONICAL TYPE QUICK RELEASE

HUB Conical Quick Release
Rear axle 136/138 mm with spacer
Front axle 102/108/110mm
Thread : 34.8 x 24 TPI
Holes/Finish to order

UG-55

ALLOY HUB FRENCH TYPE

HUB Thin Barrel
Rear 3/8" x 6½" / 7"
Front 5/16" x 5½"
Thread : 34.8 x 24 TPI / M35 x 1mm / 34.7 x 1mm
Lubrication Hole & clip to order
Holes / Finish to order

UG-56

CART HUB (REAR)

HUB CART (Elephant) 12G x 36 Holes
Axle size 1/2" x 6½"
Holes/Finish to order

UG-57

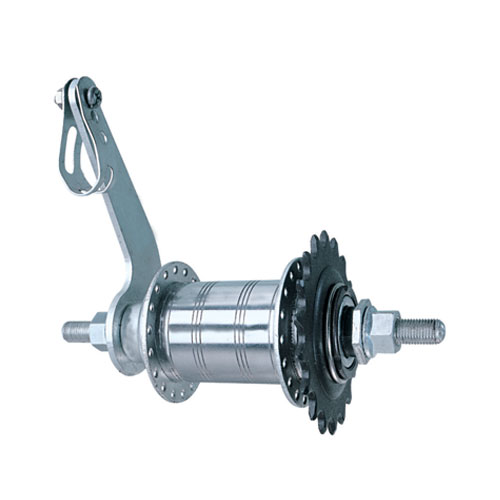

COASTER BRAKE HUB

Coaster brake hub with sprocket
Sprocket18/19/20T
Finish : Black/BCP to Order

UG-58

PARALLAX

HUB Parallax Type
Front 3/8" x 5½"
Rear with spacer 3/8" x 7"
Thread : 34.8 x 24 TPI
Holes/Finish to order
