B.B. Fittings

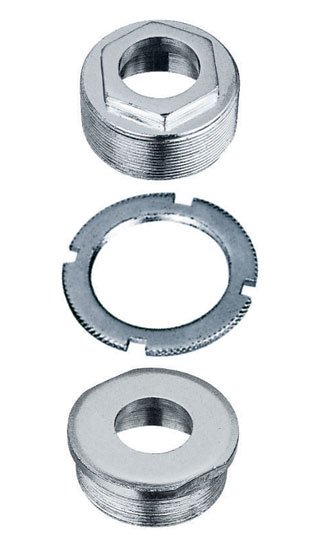

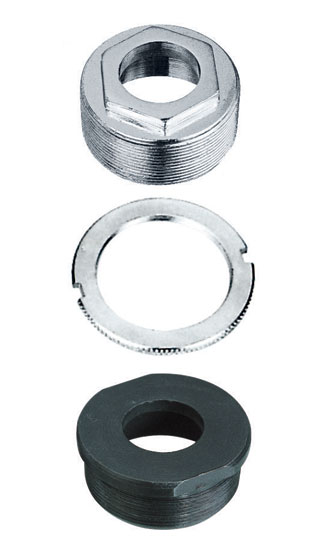

  • UG-311

    B.B. CUP RL. TYPE

    Set of 3 Thread : 34.8 x 26 TPI
    BSCY RH+LH
    Finish to Order

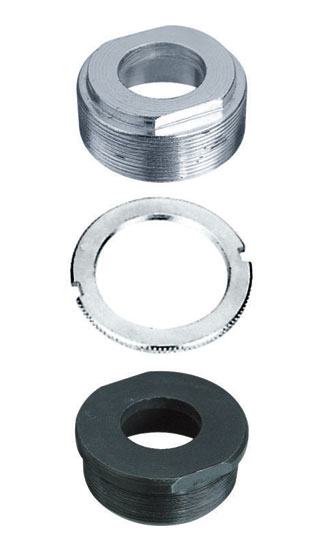

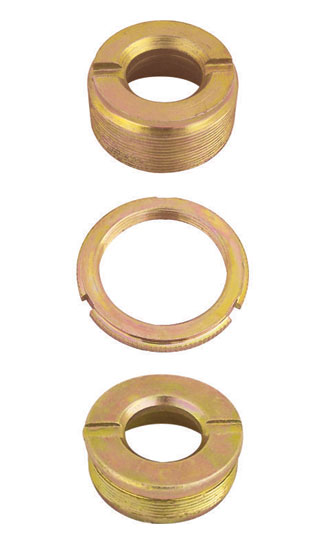

  • UG-312

    B.B. CUP PH. TYPE

    Set of 3, RH & LH Threads
    Thread : 34.8 x 24 TPI or 26 TPI,
    BSCY RH+LH 35x1mm or
    RH+RH 35x1mm

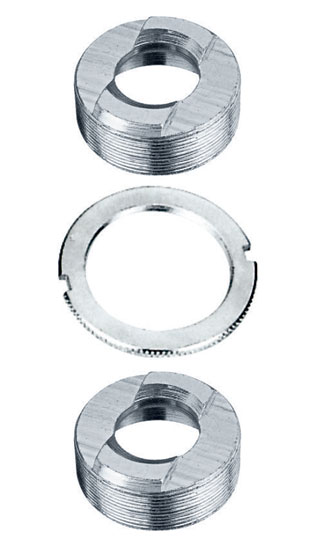

  • UG-313

    B.B CUP ITALIAN TYPE

    Set of 3 Thread : 35mm x 24 TPI,
    BSCY RH-RH (34.8 & 36mm Also Available.)

  • UG-314

    B.B CUP SOVOLCOM TYPE

    Set of 3 Thread :35 x 1mm,
    RH-RH : 36mm x 1mm
    Metric Threads

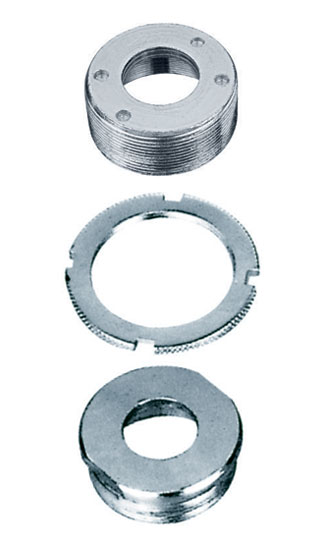

  • UG-315

    B.B CUP RUSSIAN TYPE

    Set of 3 Thread : 34.8 x 1mm, or 35
    RH-LH Finish BCP/CP/Golden

  • UG-316

    B.B CUP FRENCH TYPE

    Set of 3 Thread :35 x 1mm,
    RH-RH : 36mm x 1mm Pitch ISO
    Metric Threads

UG-321

B.B. AXLE COTTERED TYPE

(A) B.B. Axle Cottered - Centre Black.
(B) B.B. Axle Cottered BCP.
(C) B.B. Axle Cottered - Full Black

Model Size Left Centre Right T-Length Dia
A-8 34.5 61.5 45 141 -
2-C 36 54 46 136 -
Y-3 40 52 49 141 Min 15.65
Y-5 36 54 46 136 Max 15.76
Y-16 36 57 46 139 -
SLR 36 55 47 138 -
MINI 51 56 51 158 -
Mexican 45 55 45 145 -
Special Sizes - - - - -
Latin 45 57 45 147 Min 15.65
French-1 37 56 44 137 Max 15.76
French-2 35 58 45 138 -

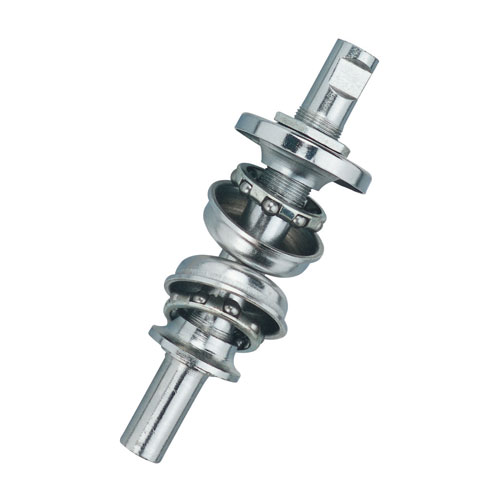

UG-331

B.B. SET THOMSON TYPE

(A) Set of 9 (Cottered) 35mm,3/16” x 10 Balls.
Grooved Axle, length - 150mm.
(B) B.B Set/7, 35MM (C) B.B. Set/7, 40mm
(D)B.B. Set/7 Russian Type CP/Golden.

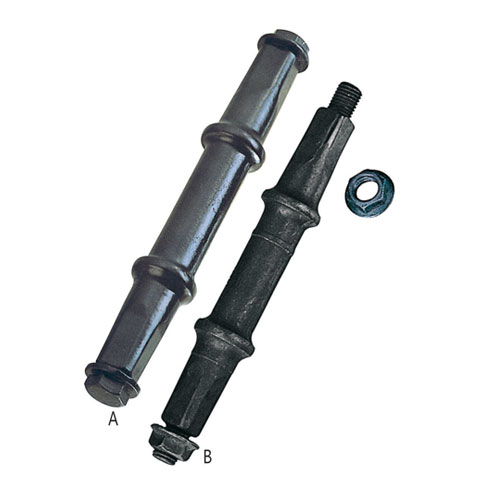

UG-341

B.B. AXLE COTTERLESS

(A) B.B. Axle Cottereless - Bolt Type.
(B) B.B. Axle Cottereless - Nut Type.

Size No. A B C D
*3U 35 52 40.5 127.5
*3S 32 52 37.5 121.5
*3T 35 52 39 126
*5U 35 54 40.5 129.5
*5S 35 54 37.5 126.5
*5T 35 54 39 128
*6S 35 56 37.5 128.5
*7S 35 57 37.5 129.5
*7T 35 57 39 131
*7U 35 57 40.5 132.5
*7R 35 57 42 134

Packaging
